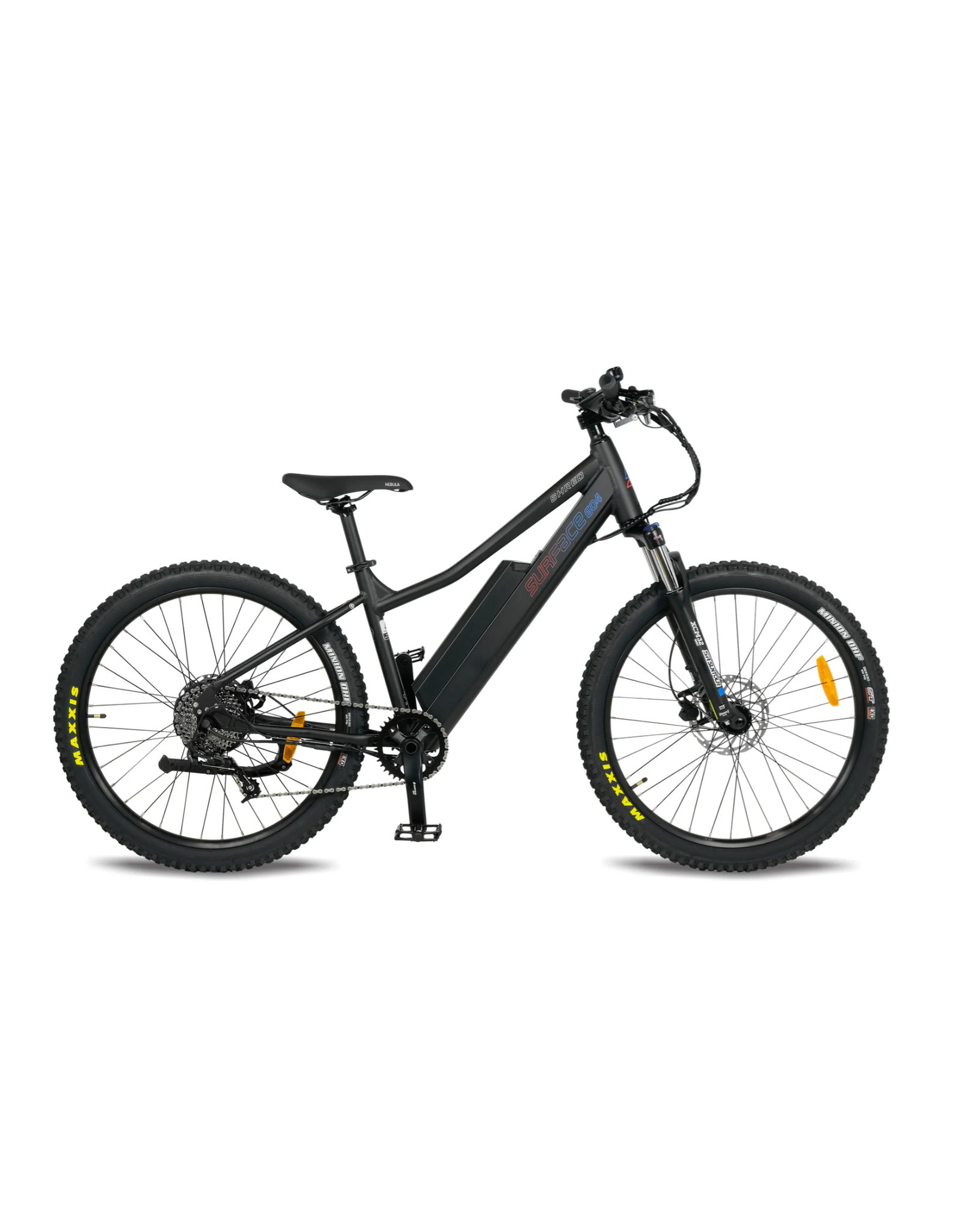

Surface604 SHRED 48V 20AH
| Availability: | On backorder |
| Delivery time: | Purchase now and your item will be available in 1-5 days. Backorder Bicycle purchase requires full payment. Cancellation after 24hours results in 15% restocking fee. We will notify you immediately of any delays. |
POWERFUL 500W MOTOR
-
Purpose built for top speed Bafang 500W 48V electric motor (Bafang RM G360.500.DC)
-
Feel the surge of quiet, consistent power distribution at higher speeds - vibration-free.
-
Geared for performance - we paired all that power with an industry-leading 12mosfet 25A controller, so Shred delivers unmatched torque and speed.
WHISPER SMOOTH TORQUE SENSING PEDAL ASSIST
Because an electric bike is only as good as it’s power distribution.
-
Shred’s incredibly smooth torque sensor knows how hard you’re pedaling down to the microsecond and matches it with proportionate power.
-
Custom drop out design delivers whisper smooth torque sensor sensation at any assist level. In fact, you’ll swear it’s as so smooth as a mid-drive motor.
-
Gone are the days of simple cadence sensors!
REDESIGNED COCKPIT
Now with an extra-large colour LCD display to show all vital information and provide added security.
SURFACE604 Color LCD Display with USB Jack, bigger display: 3.5" for 2024.
Set a passcode and the bike won’t start without it, just like your phone.
)
LONG RANGE BATTERY
Offering high-capacity battery:
48V20ah (960wh) 5000mah cell size (Same as in Tesla)
Samsung Cells 21700, Made in Korea, USB Plug, capacity indicator button
Range up to 65 Miles (105 Kms)
Weight: 10.23 LBS (4.65 KG)
*Proprietary design
40 MILE RANGE (60KM)
KEY
TECH SPECS
SR SUNTOUR XCM 32, 29ER SUSPENSION FORK
(100MM WITH AXLE THRU HUB)
(100MM WITH AXLE THRU HUB)
CST PATROL 27.5" x 2.8" TIRE
TEKTRO HYDRAULIC QUADPISTON DISC BRAKES
EMTB SPECIFIC, WITH MOTOR INHIBITORS
EMTB SPECIFIC, WITH MOTOR INHIBITORS
SRAM X5 9-SPEED DRIVETRAIN
TORQUE SENSOR SYSTEM
SELLE ROYALE ERGONOMIC GEL SADDLE
LARGE FIXED-COLOR LED DISPLAY WITH USB JACK
POWERFUL BÜCHEL "SHINY 120" LED FRONT
LIGHT (INCLUDED), REAR LED LIGHT (OPTIONAL)
LIGHT (INCLUDED), REAR LED LIGHT (OPTIONAL)
SHRED FULL TECH SPECS
MOTOR
eMTB Specific 500W (Peaks At 750W) Bafang Geared Hub Brushless Motor
DRIVE MODE
Drop Out Torque Sensing Pedal Assist with a Throttle
TORQUE
65Nm of Torque
THROTTLE
Thumb Push Activated Throttle
CONTROLLER
SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller
TOP SPEED
20mph (32kmh)*, Comes as Class 2
(Unlocked) 30mph (48kmh), as Class 3
BATTERY
Included: 48V 20Ah / 960Wh
Samsung lithium-ion 21700 cells
BATTERY RANGE
Upto 65mi (105km) with a 48V20Ah Battery
BATTERY CHARGE TIME
3-4 Hours for a Full Charge from Empty
DISPLAY TYPE
SURFACE604 Color LCD Display with USB Jack
Bigger display: 3.5" for 2024
LIGHTS
BÜCHEL "SHINY 120" front headlight with 120 lumens
Pre-Wired To Connect Rear Stop Light
FORK
SR Suntour XCM32 BOOST, 110mm Axle Thru Hub, 130mm travel
MOTOR WIRE HARNESS
30Ah, can handle up to 120C current
DERAILLEUR
SRAM X5 9-Speed 1-Piece Forged CNC with 2 Sealed Bearings
CASSETTE
SRAM 12-34T
SHIFT LEVERS
SRAM X5 Trigger Shift
BRAKES
TEKTRO E500, MTB Specific Hydraulic Disc Brakes
Post Mount, with Motor Inhibitors
CRANK SET
SAMOX 38T Front Sprocket, 170mm Crank Arms
ROTORS
180mm Front/Rear x 2.34mm Thick
BOTTOM BRACKET
SAMOX Sealed Bottom Bracket
FRAME TYPE
Tapered Headtube, Custom Reinforced Battery Mounts
Internal Cable Routing, Post Mount Brakes
FRAME MATERIAL
6061 Aluminum Alloy
STEM
Uno 40 degree Forged
HEAD SET
SAMOX Tapered with Sealed Bearings 1 1/8" - 1 1/2"
HANDLEBAR
PEDALS
WELLGO Platform, with Die Casting Body
CHAIN
KMC 9-Speed
SEAT POST DIAMETER
30.4mm
SADDLE
Selle Royal Gel Saddle "Essenza Plus"
with elastomer (Relaxed)
suitable for City/Tour use
FLEXITE shell features a unique indented structure,
adding superb flexibility and shock absorption
Adjustable up to 9 degrees.
WHEELS/TIRE
CST Patrol 27.5" x 2.8"
RIMS
Aluminum Alloy Double Wall Rim, 27.5″x13Gx36H
FRONT HUBS
1-Piece Forged CNC with 2 Sealed Bearings, Cro-Mo Axle and Alloy QR
KICKSTAND
Adjustable Heavy-Duty Aluminum
STANDOVER HEIGHT
Small-Medium: 28.5” (724mm)
Medium-Large: 30” (762mm)
RECOMMENDED RIDER HEIGHT
For Riders: S/M 5’2” - 5’7”, M/L 5’8” - 6’6”
Frame Sizes: S/M - 17.5", M/L - 19.5"
NET WEIGHT (INCLUDING BATTERY)
29.55KG/65lbs (20AH)
BATTERY WEIGHT
20AH battery 4.65KG/10lbs
WEIGHT CAPACITY
285lbs (130kg)
STANDARD FEATURES
Adjustable Kickstand, Water Bottle Bosses
OPTIONAL UPGRADE FEATURES
Chain Guide, NCX Suspension
Seat Post, Rear Rack, Rear Led Light, Wren Inverted 110mm 4.82 Lbs Fork
