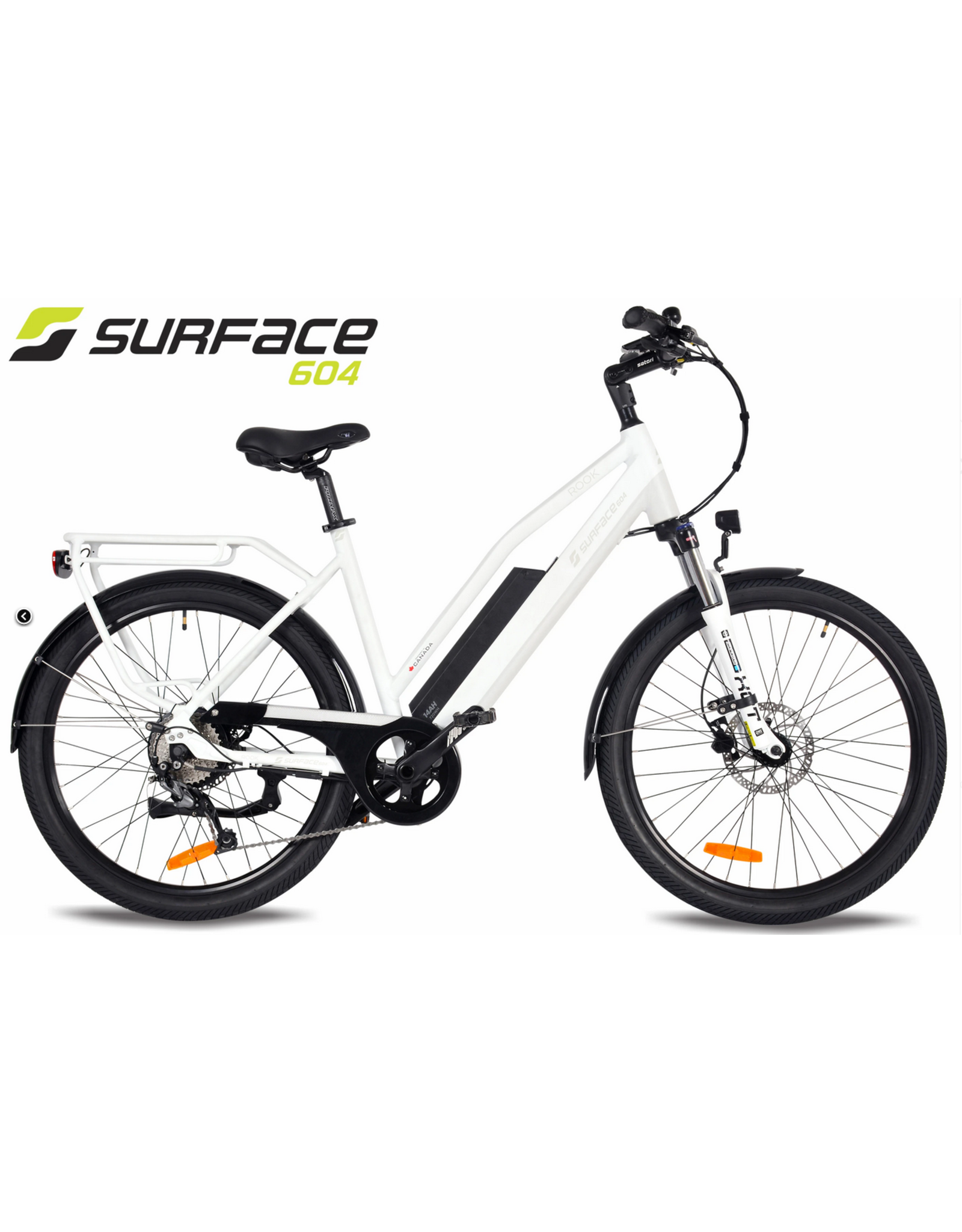

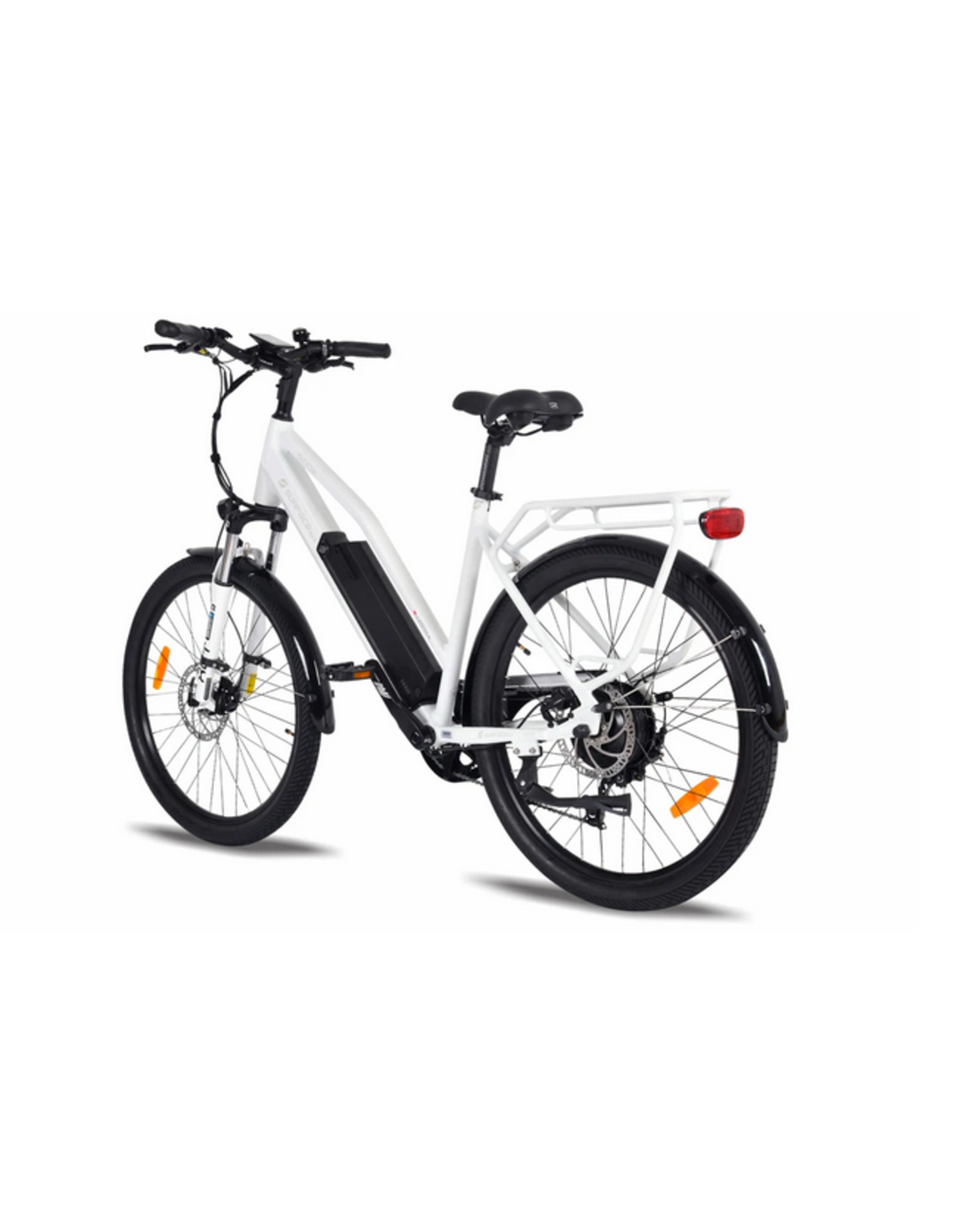

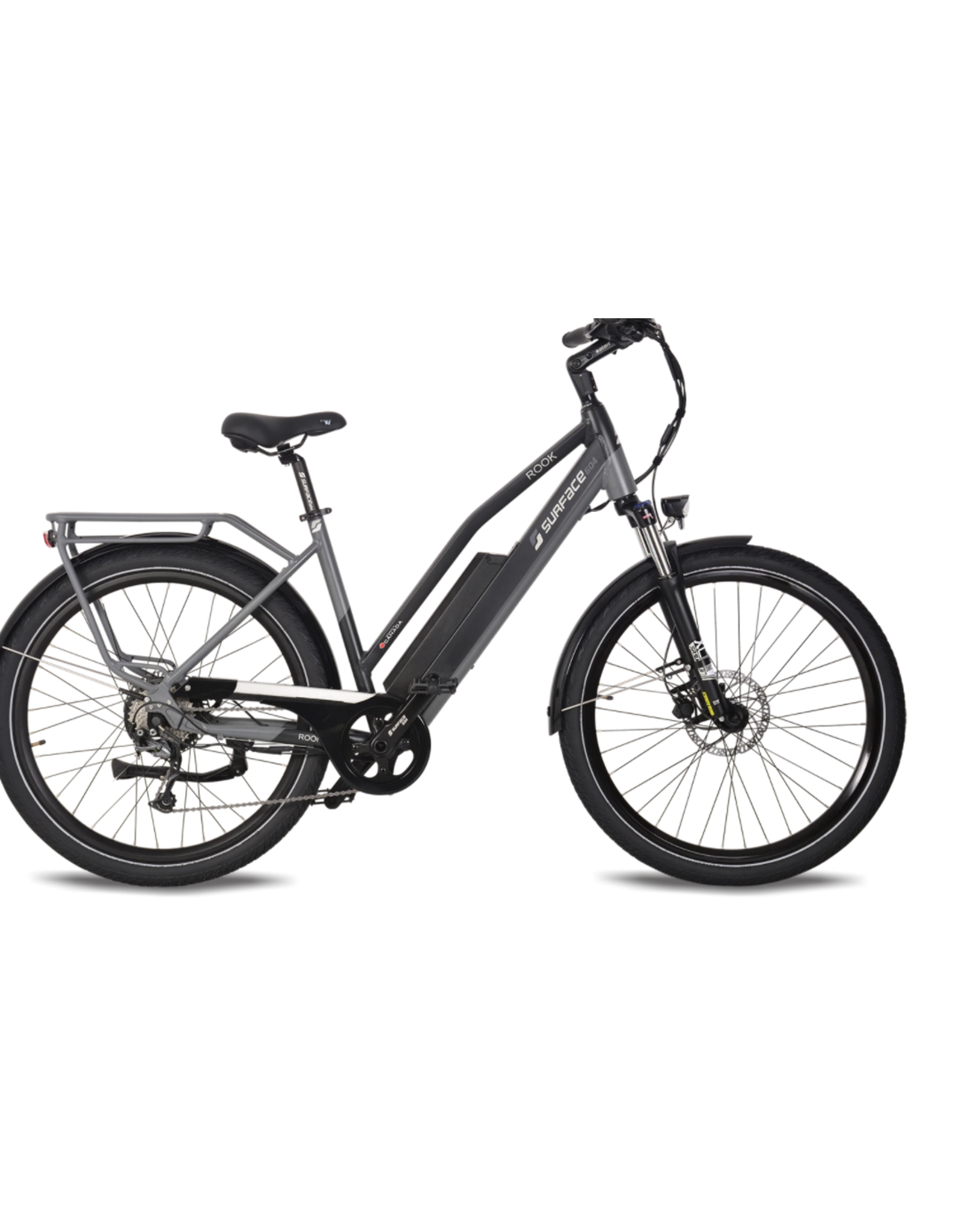

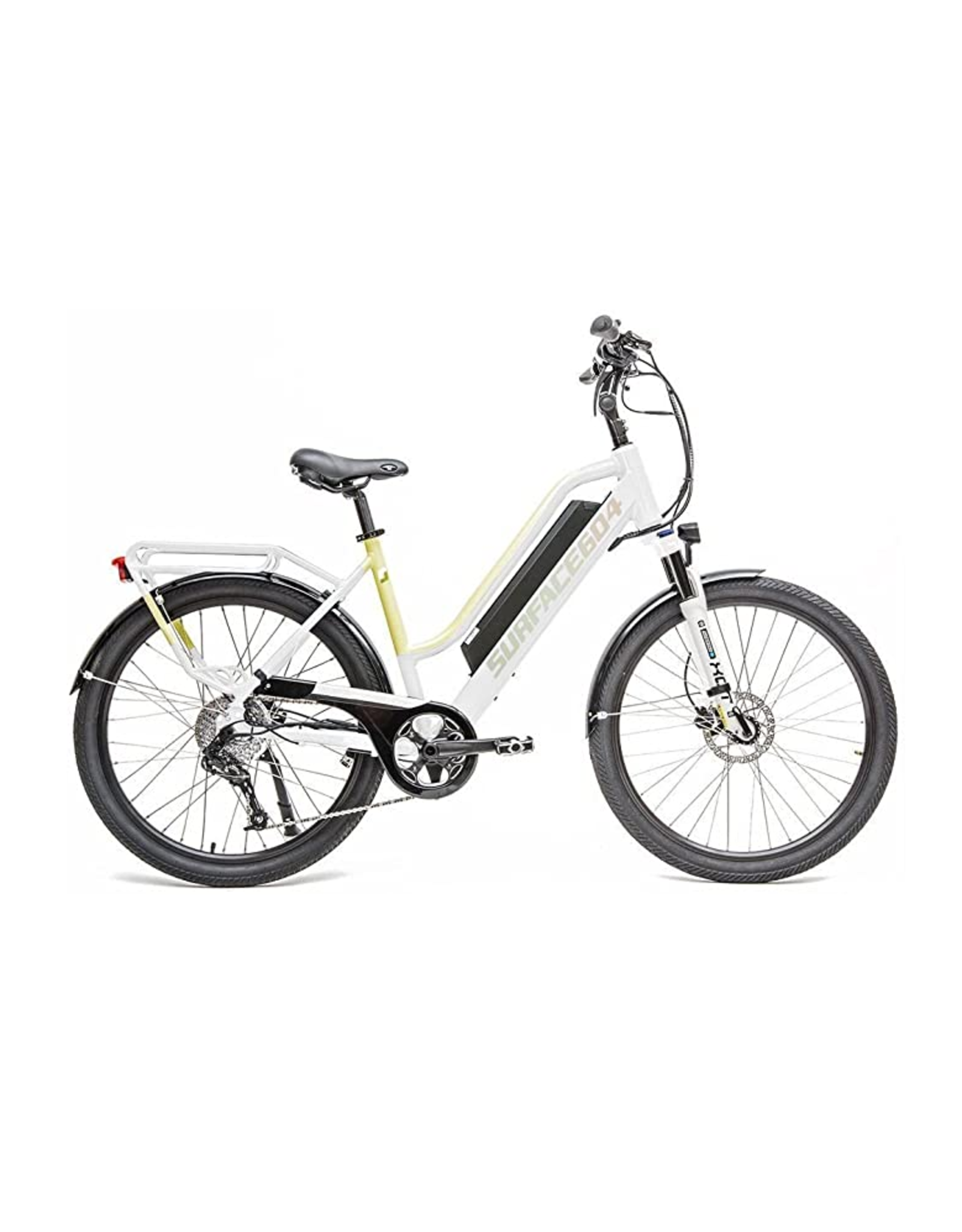

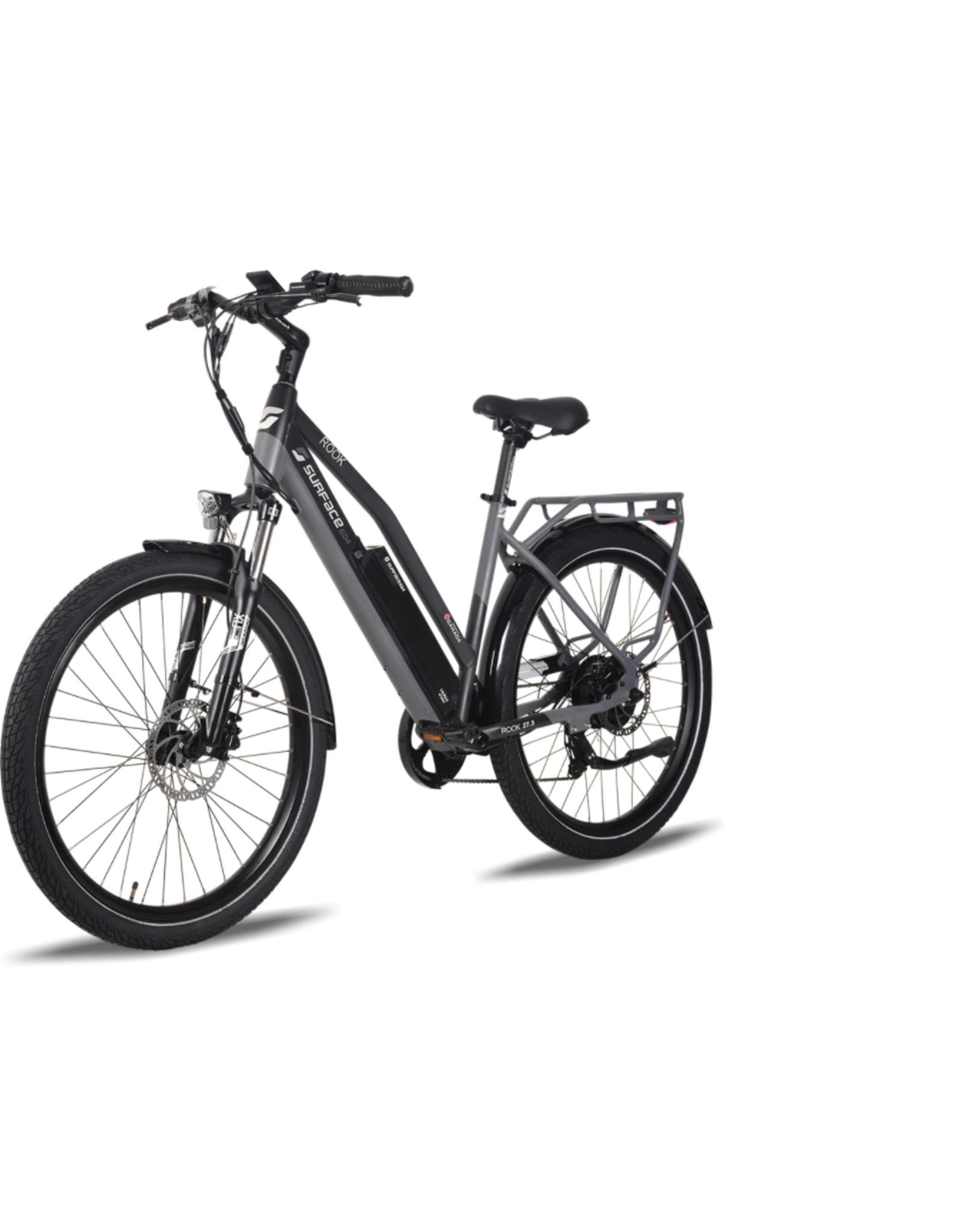

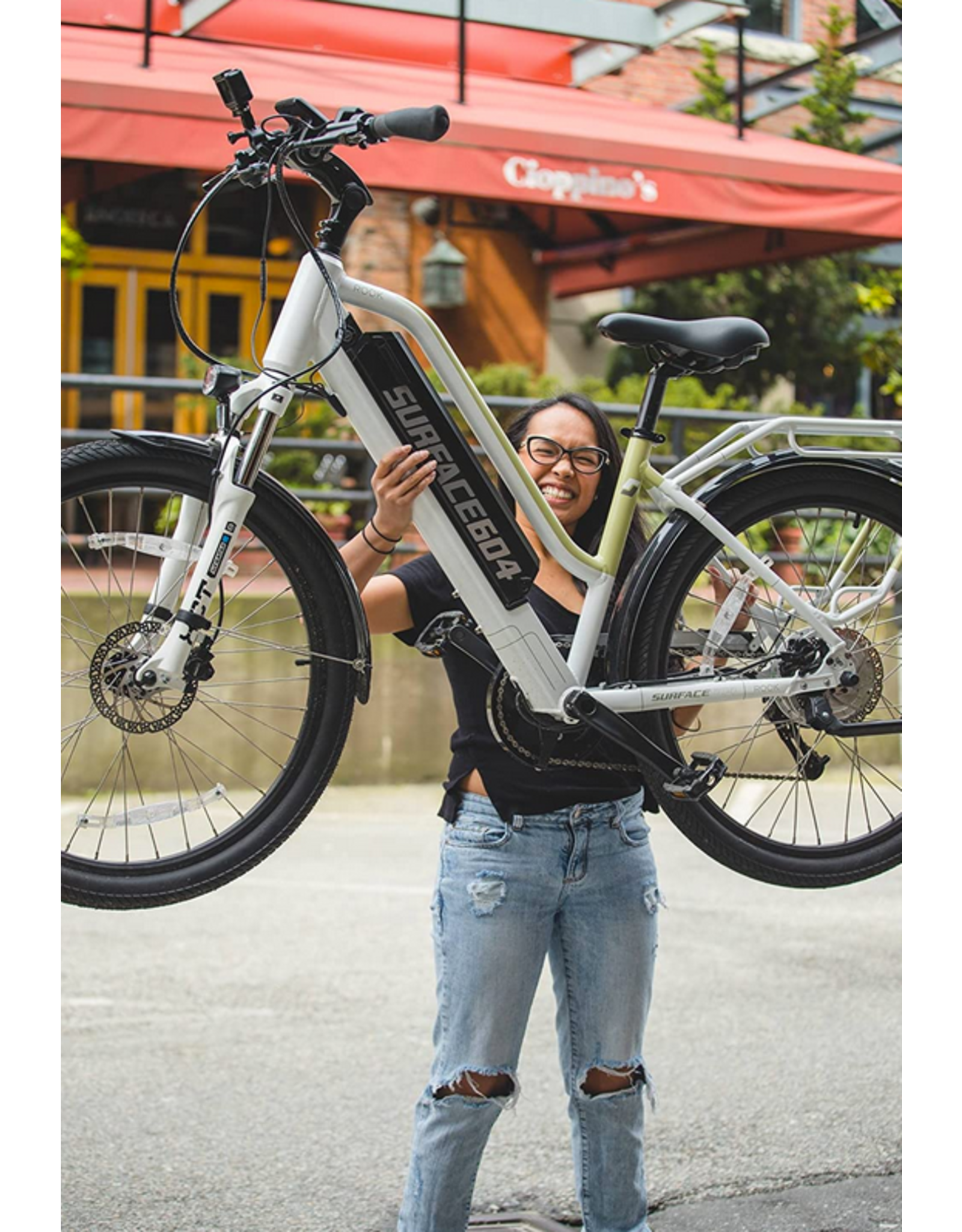

SURFACE 604 ROOK

Unleash your adventurous spirit with the Rook, a perfect blend of power and versatility. Designed for commutes and adventures, this e-bike features a 500W motor and reaches speeds up to 28mph unlocked. Its 48V 20Ah Samsung battery offers up to 65 miles per charge, ensuring you never run out of power. Navigate city streets or scenic trails effortlessly with the Rook.



Key Technical Specs





SR Suntour XCM30, 27.5 Suspension Fork (80mm With Quick Release)



27.5" X 2.4" Custom S604 Tires With Puncture Protections 3mm “Green Shield” technology



Tektro Auriga Hydraulic Disc Brakes With 180mm Rotor



Shimano Alivio 9-speed Drivetrain



Torque Sensor System



Selle Royale Ergonomic Gel Saddle



Large S604 Fixed-Color LED Display with USB Jack



Powerful Büchel Led Front / Rear Lights



Welded Rear Rack



Drive System

Motor

500W (Peaks At 750W) Bafang Geared Hub Brushless Motor

Drive Mode

Drop Out Torque Sensing Pedal Assist with a Throttle

Throttle

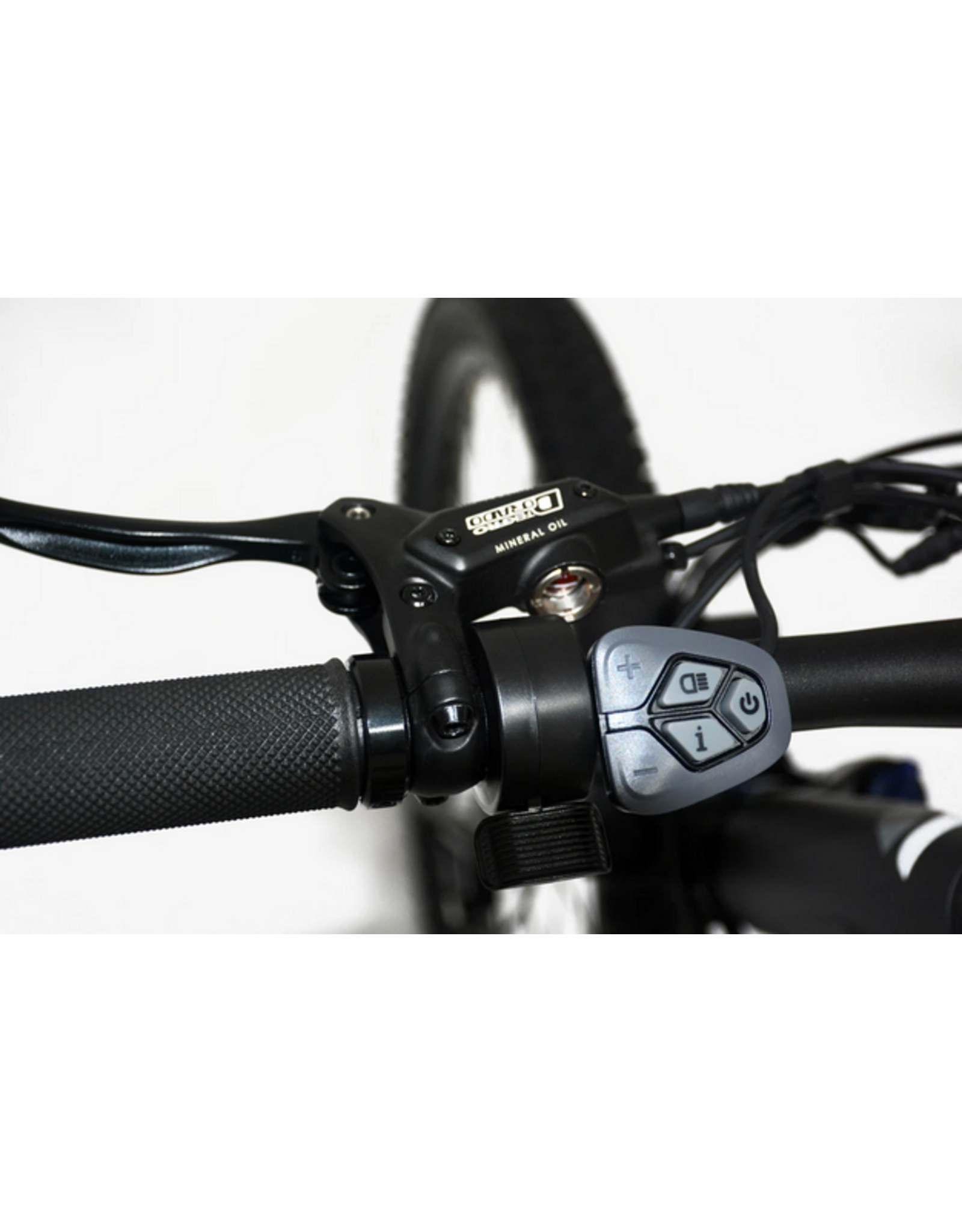

Thumb Push Activated Throttle

Torque

65Nm of Torque

Controller

SURFACE604 Designed 12 MOS 48V 500W 25Ah, Smart Controller

Motor Wire Harness

30Ah, can handle up to 120C current (upgraded)



Electronics

Battery

Included: 48V 20Ah / 960Wh Samsung lithium-ion 21700 cells

Battery Range

Upto 65mi (105km) with a 48V20Ah Battery

Battery Charge Time

3-4 Hours for a Full Charge from Empty

Display Type

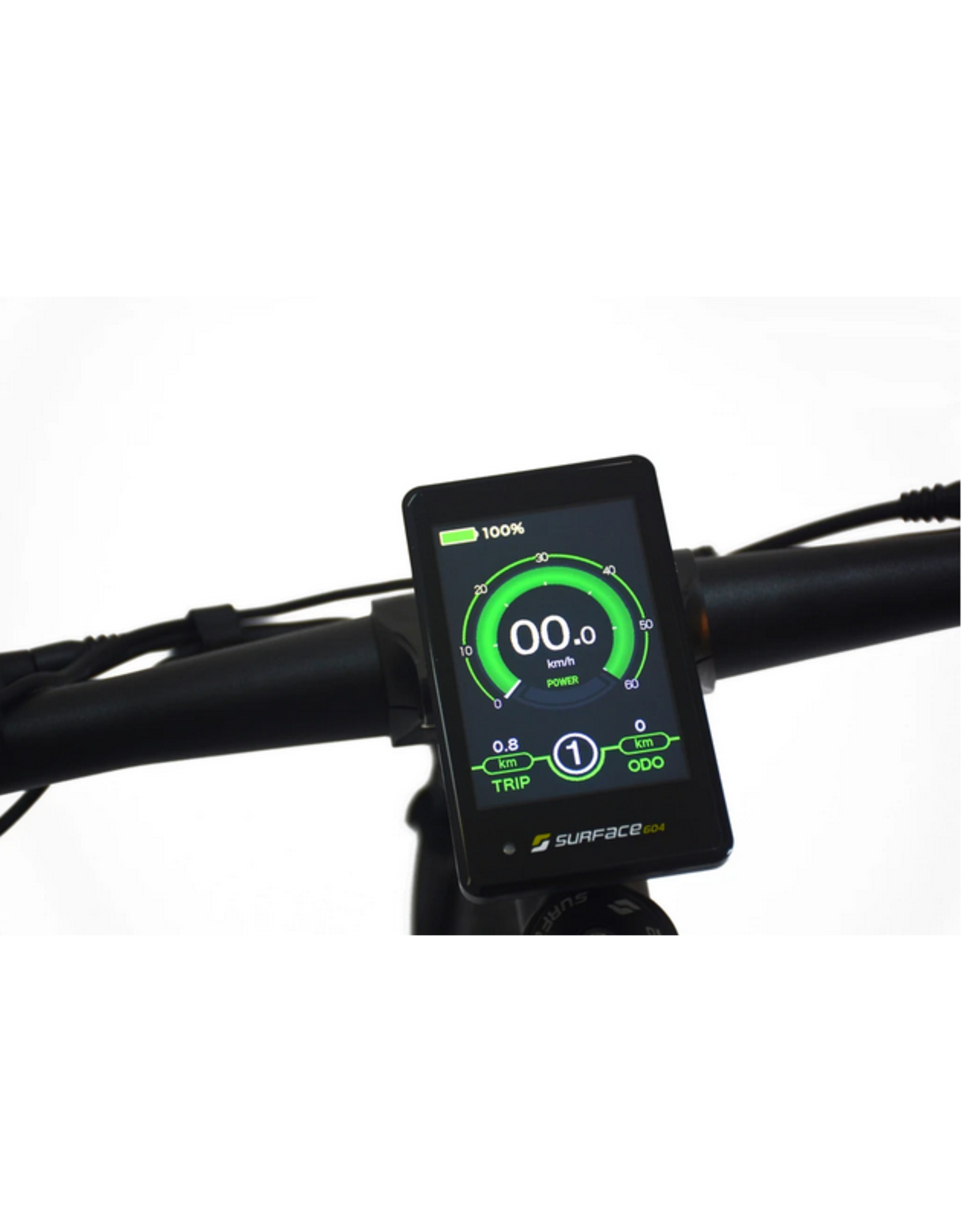

SURFACE604 Color LCD Display with USB Jack Bigger display: 3.5" for 2024

Lights

BÜCHEL "Secu Forte" LED Head Light with 150 lumens and BÜCHEL Rear LED light



Frame & Suspension

Fork

SR SUNTOUR XCM 27.5, 80mm with Quick Release

Frame Type

Straight steerer Headtube, Custom Reinforced Battery Mounts, Internal Cable Routing, Post Mount Brakes

Frame Material

6061 Aluminum Alloy

Stem

SATORI Up2+, Adjustable

Handlebar

PROMAX Aluminum, 30mm Rise With 15° Backsweep 700mm Wide



Components

Derailleur

SHIMANO ALIVIO 9-Speed

Cassette

SHIMANO 11-36T Cassette

Shift Levers

SHIMANO ALIVIO

Brakes

TEKTRO Auriga Hydraulic Disc Brakes Post Mount, with Motor Inhibitors

Crank Set

SAMOX 42T Front Sprocket

Rotors

180mm Front/Rear x 2.34mm Thick

Bottom Bracket

SAMOX Sealed Bottom Bracket

Pedals

WELLGO Platform, with Die Casting Body

Chain

KMC 9-Speed

Seat Post Diameter

30.4mm

Saddle

Selle Royal Gel Saddle "Essenza Plus" with elastomer (Relaxed) suitable for City/Tour use FLEXITE shell features a unique indented structure, adding superb flexibility and shock absorption Adjustable up to 9 degrees.

Wheels/Tire

27.5" X 2.4" Custom S604 Panaracer Tires With Puncture Protections With Reflective Sidewall



Recommended rider height

Frame Sizes: S/M - 17.5", M/L - 19.5" For Riders: S/M 5’2”-5’7”, M/L 5’8” - 6’6”

Standover height

Small-Medium: 28.5” (724mm)" Medium-Large: 30” (762mm)
