QUAD LOCK 360 Bases

Securely fix your mount to flat surfaces using one of our Rectangle Flat Hole Bases.

Choose between a 2 hole or a 4 hole base.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the universal AMPs hole spacing standard and the holes will accept 10G or M5 countersunk fasteners. If using the 4 hole base, we recommend using all 4 hole screws for the strongest connection.

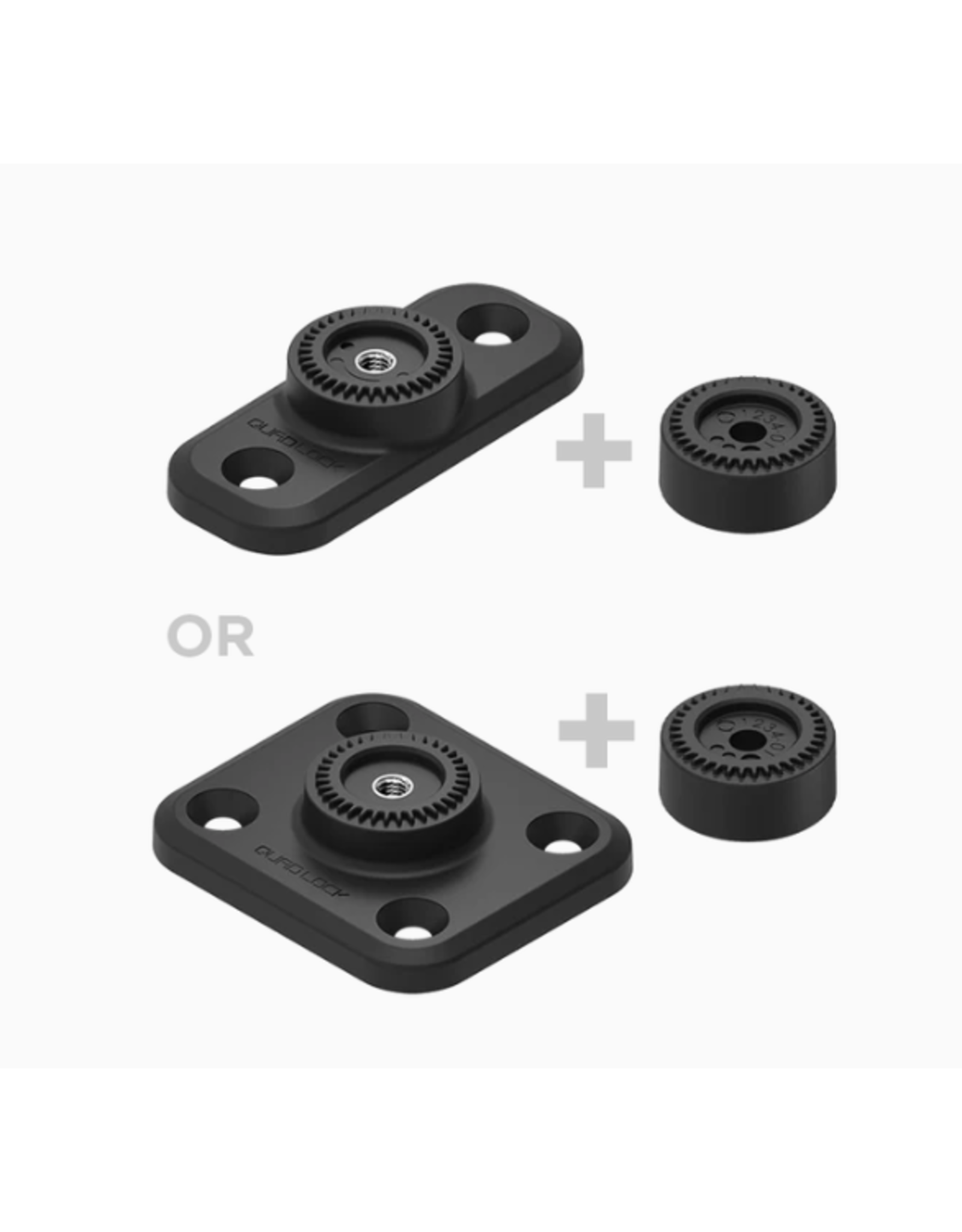

A 10mm Spacers and x2 screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Please Note: Screws are not provided for mounting the base to your required surface

2 HOLE BASE

• 1 x Flat Rectangle 2 Hole Base
• 1 x 10mm Spacers
• 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
• 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

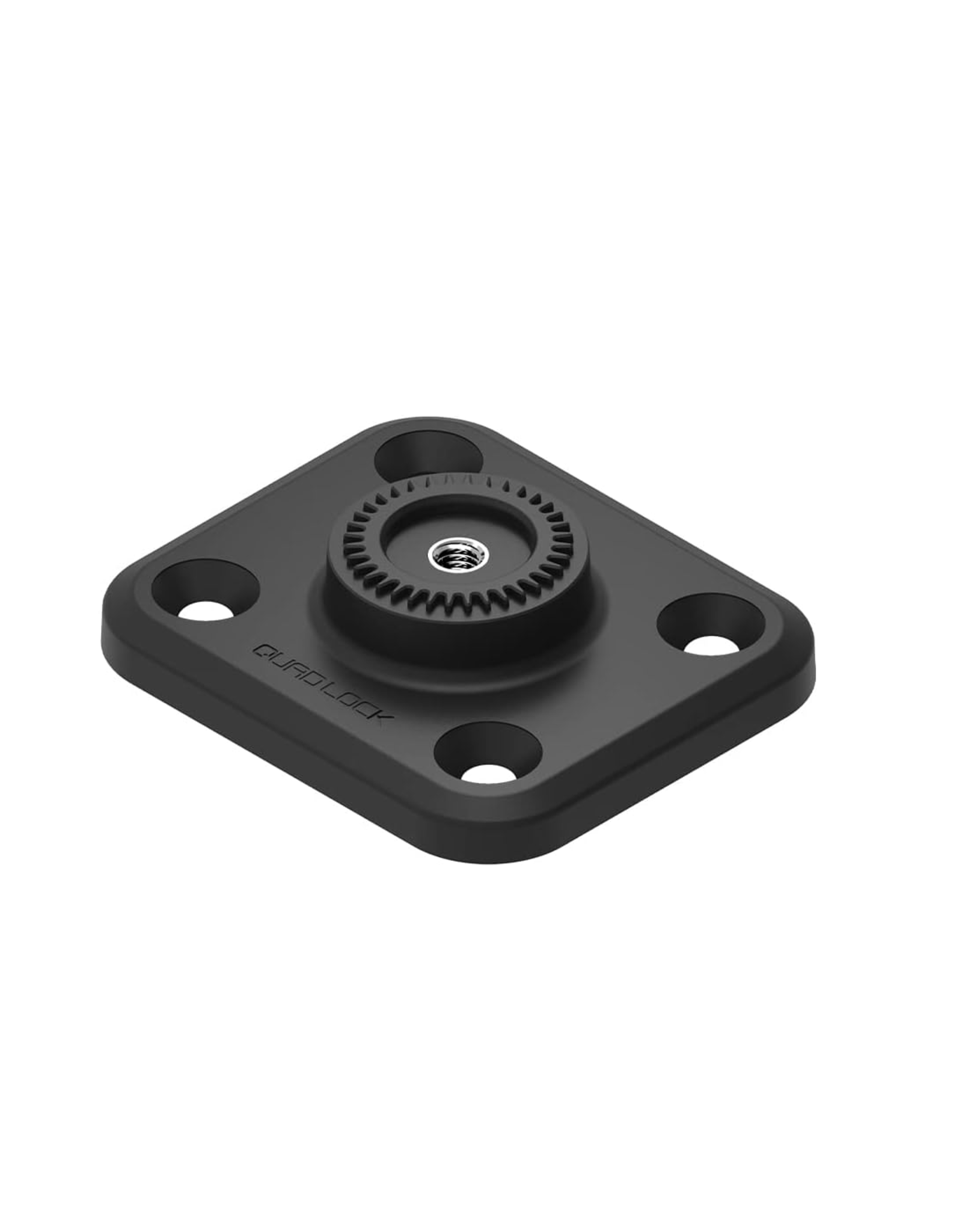

4 HOLE BASE

• 1 x Flat Rectangle 4 Hole Base
• 1 x 10mm Spacers
• 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
• 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

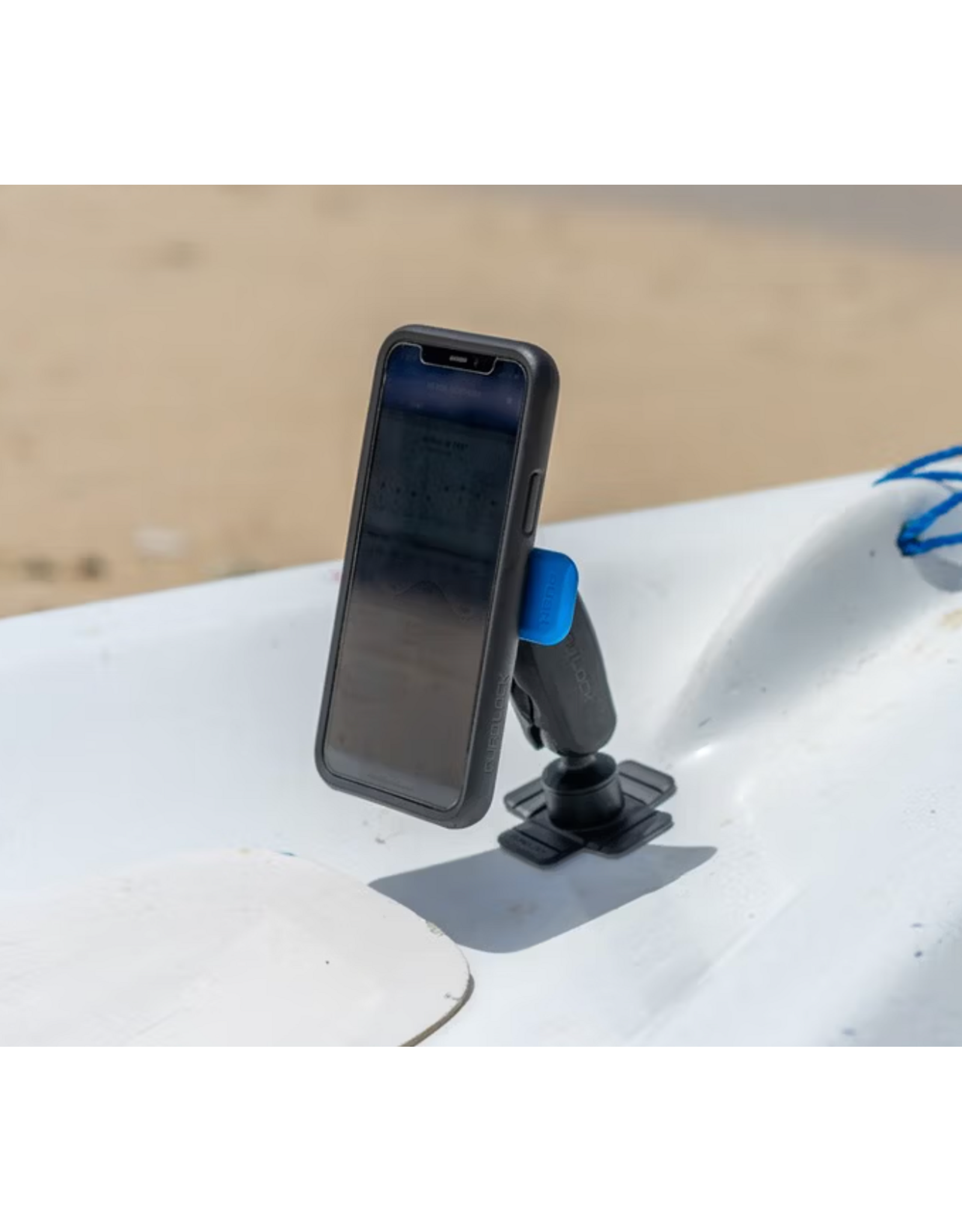

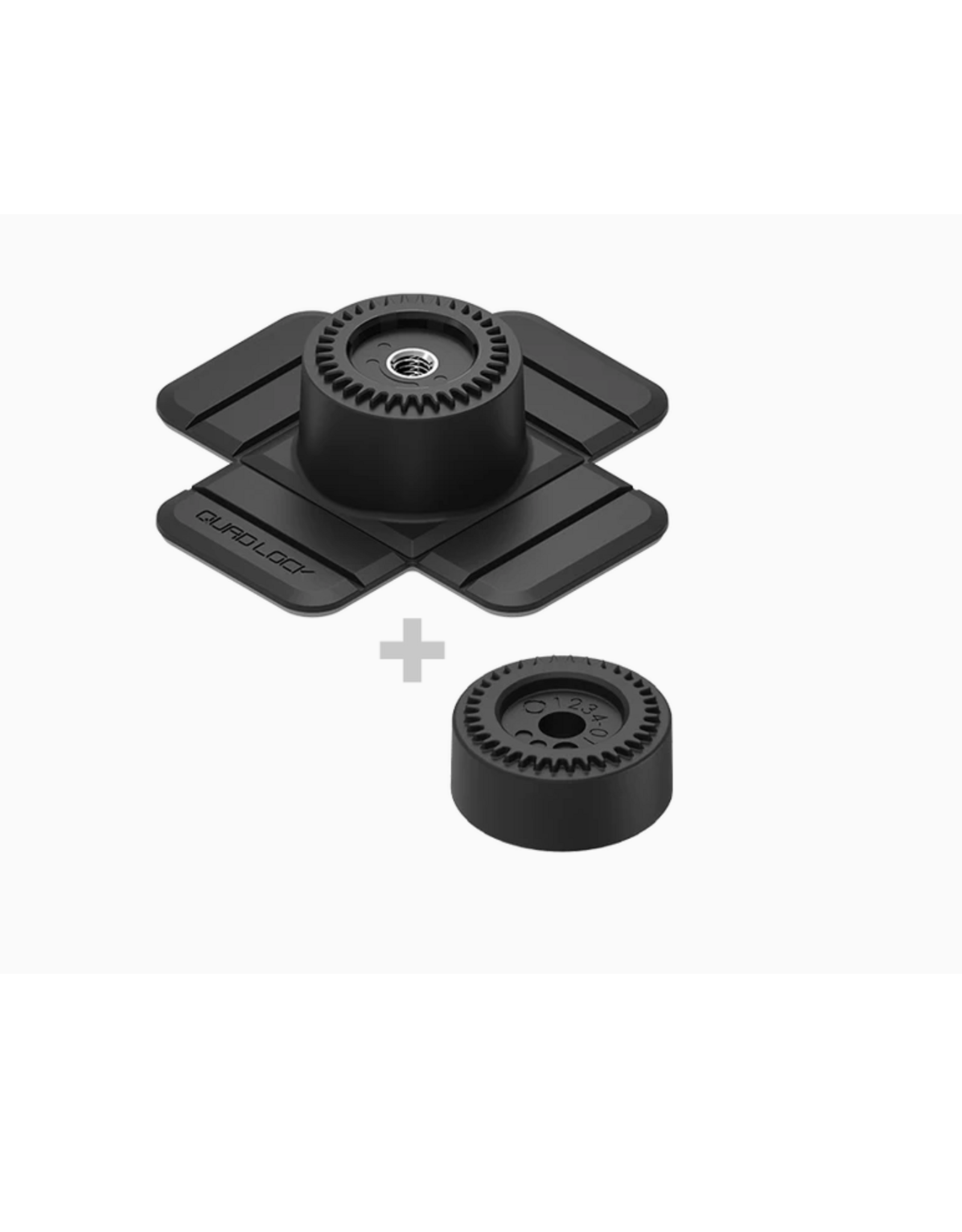

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces*

Using a super secure 3M™ Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

*Please Note: Not intended for severely curved surfaces (eg. 180 degrees)

• 1 x Flexible Adhesive Base
• 1 x 10mm Spacers
• 1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms)
• 1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)
• 1 x Isopropyl Alcohol Wipe
