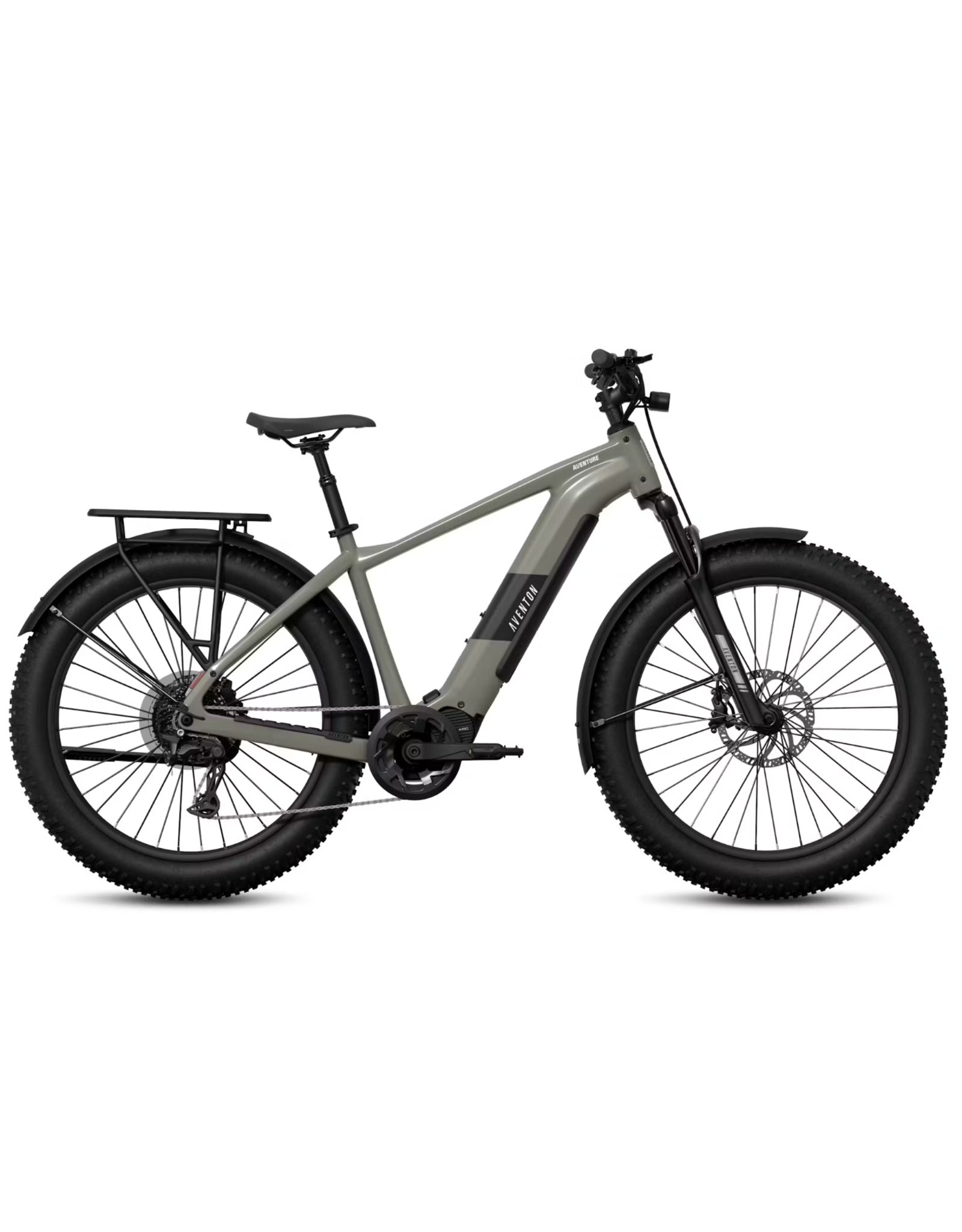

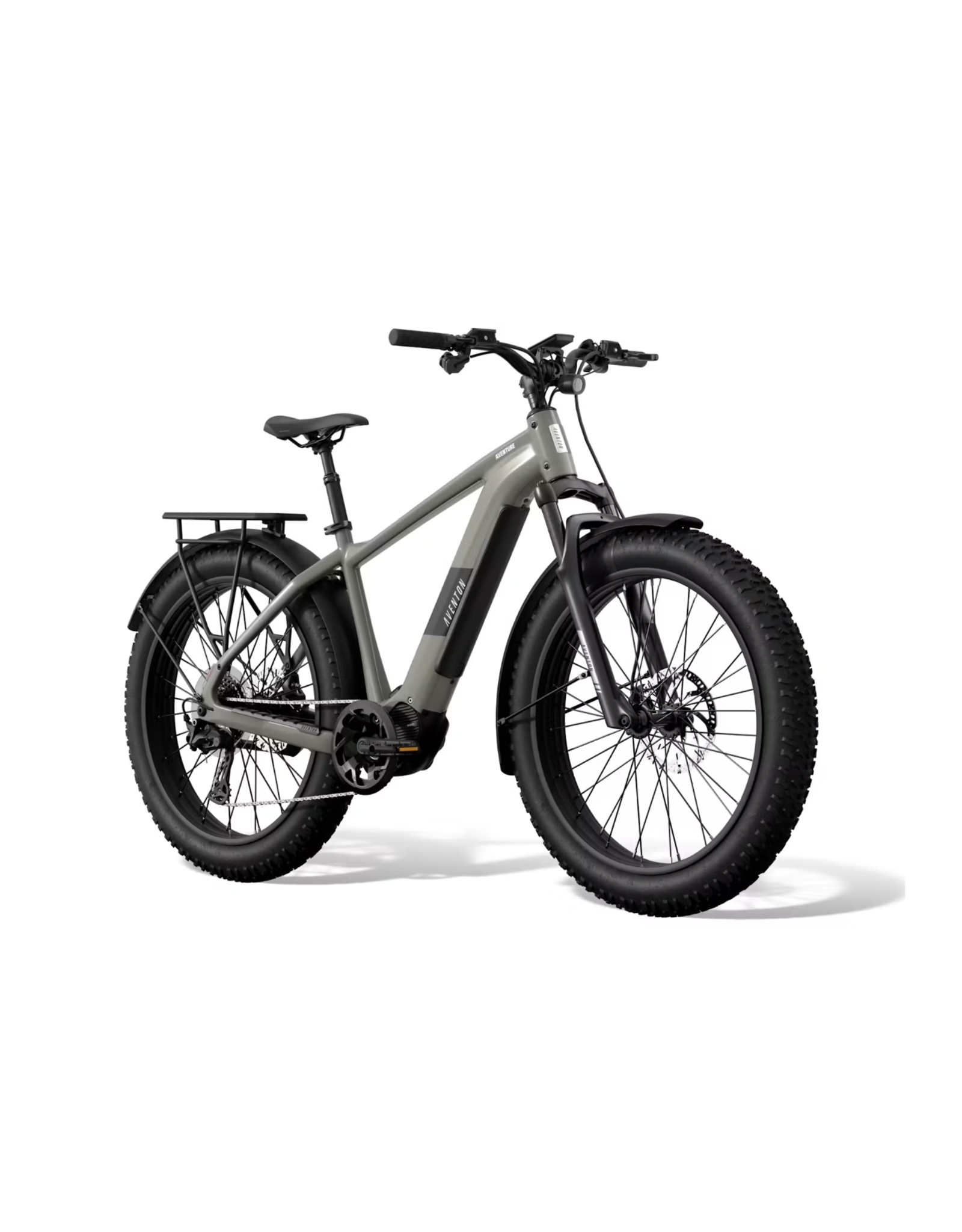

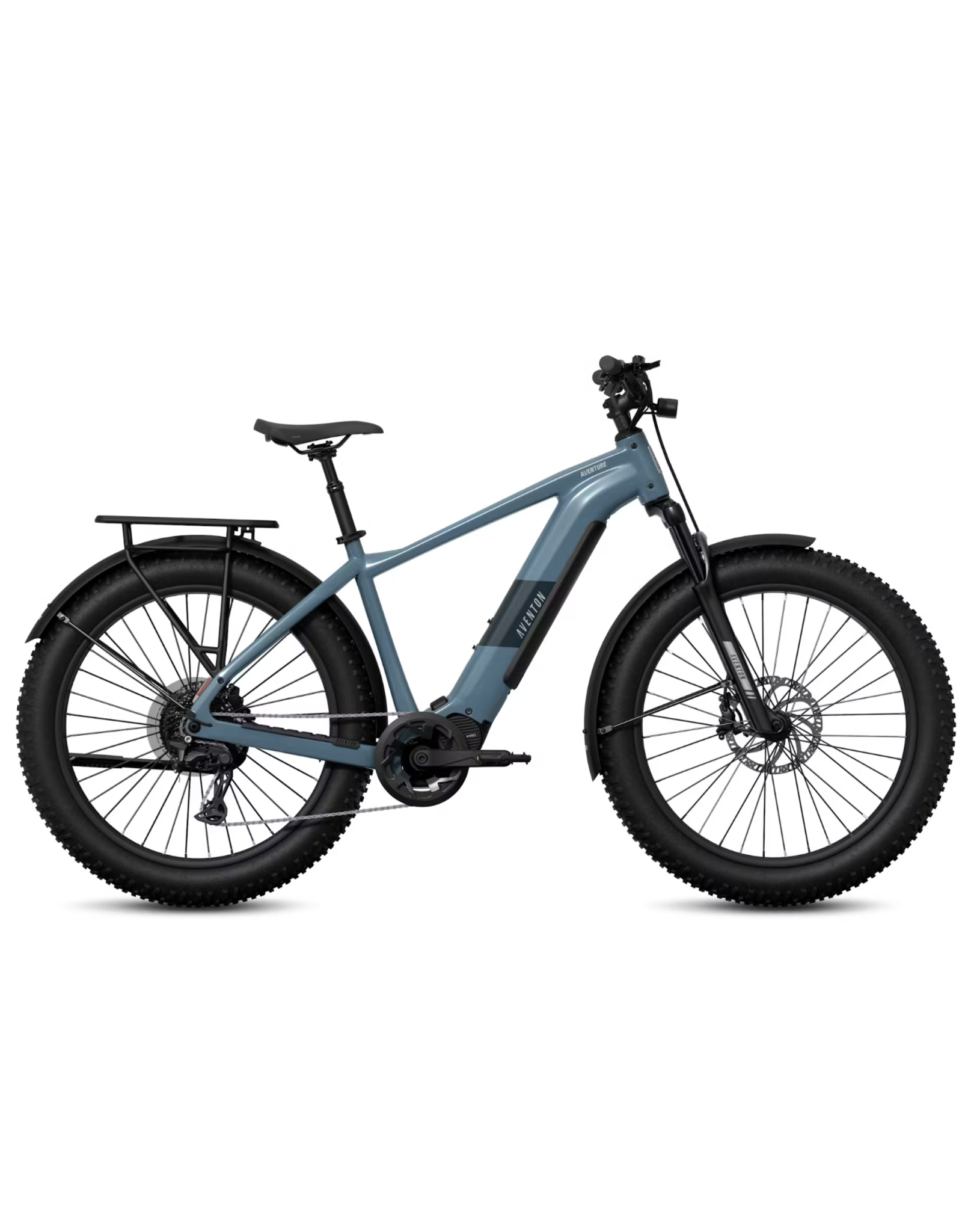

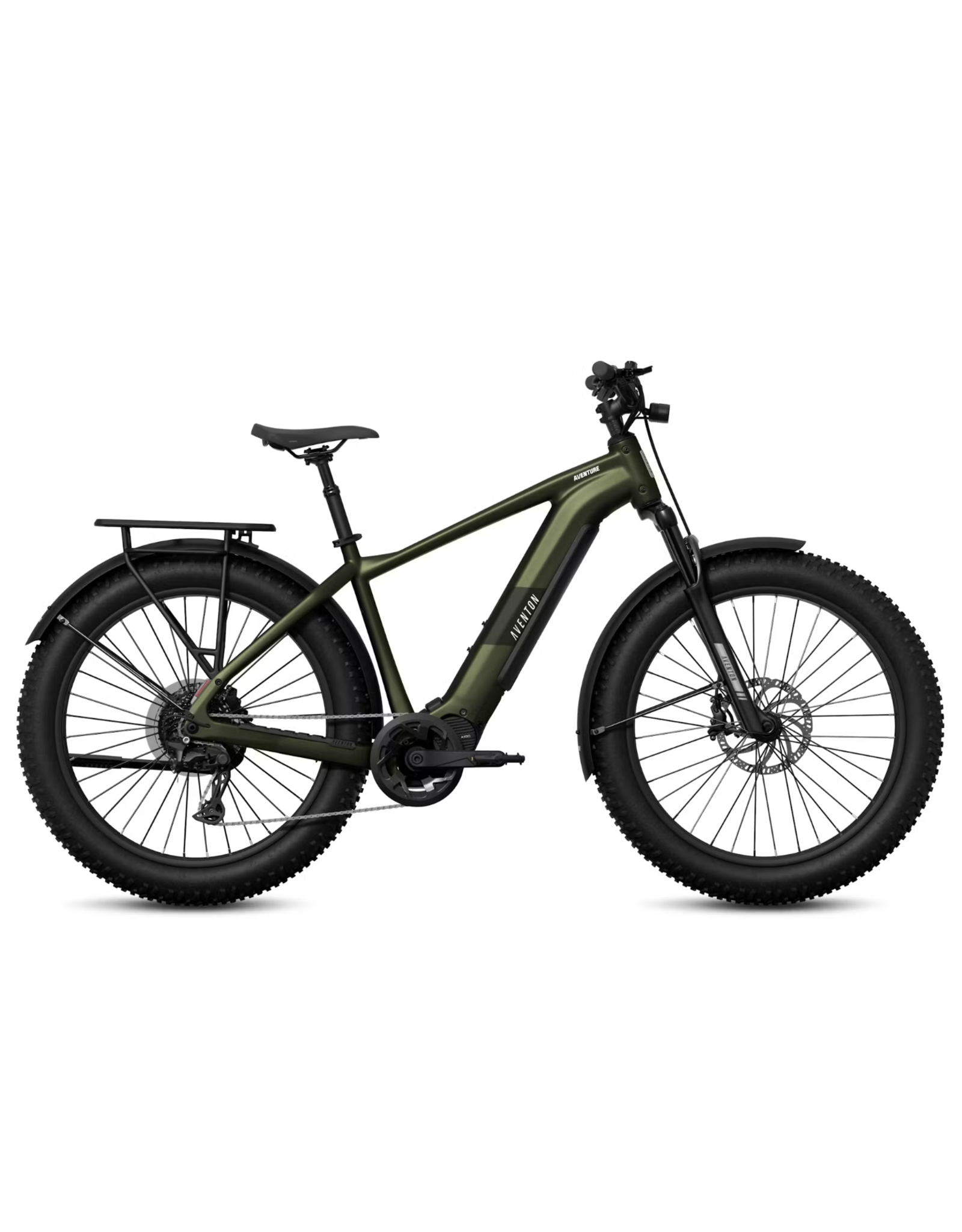

AVENTON Aventure M Ebike

Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities. With Aventon's electronic autoshift functionality ensuring you're always in the right gear at the right time, you can focus solely on the making it to the next mountain peak. ACU technology brings a host of connectivity and added security features including GPS^† tracking and an integrated lock, while the updated display brings you important metrics like torque, cadence, and power to help you maximize every ride. No matter where you want to go, Aventure M will get you there.

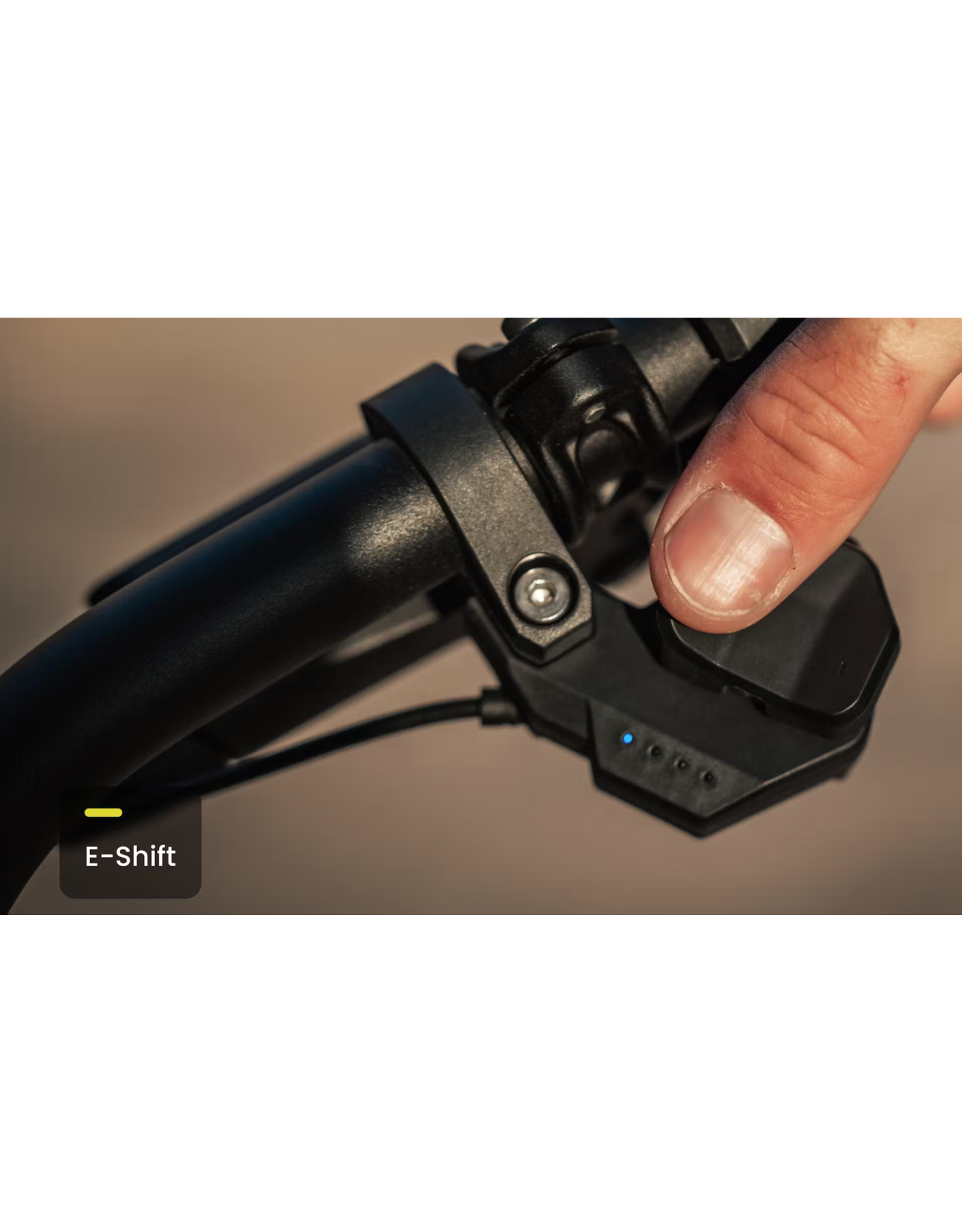

Electronic Shifter

The electronic shifter is powered directly by Aventure M’s main battery, delivering smooth, reliable shifting without the need for separate charging—ideal for ultra consistent, low-maintenance riding.



AutoShift

Automatic shifting is an optional feature that measures speed and cadence to automatically select the ideal gear for the terrain ahead, so you can forget about shifting gears and focus solely on enjoying the ride.

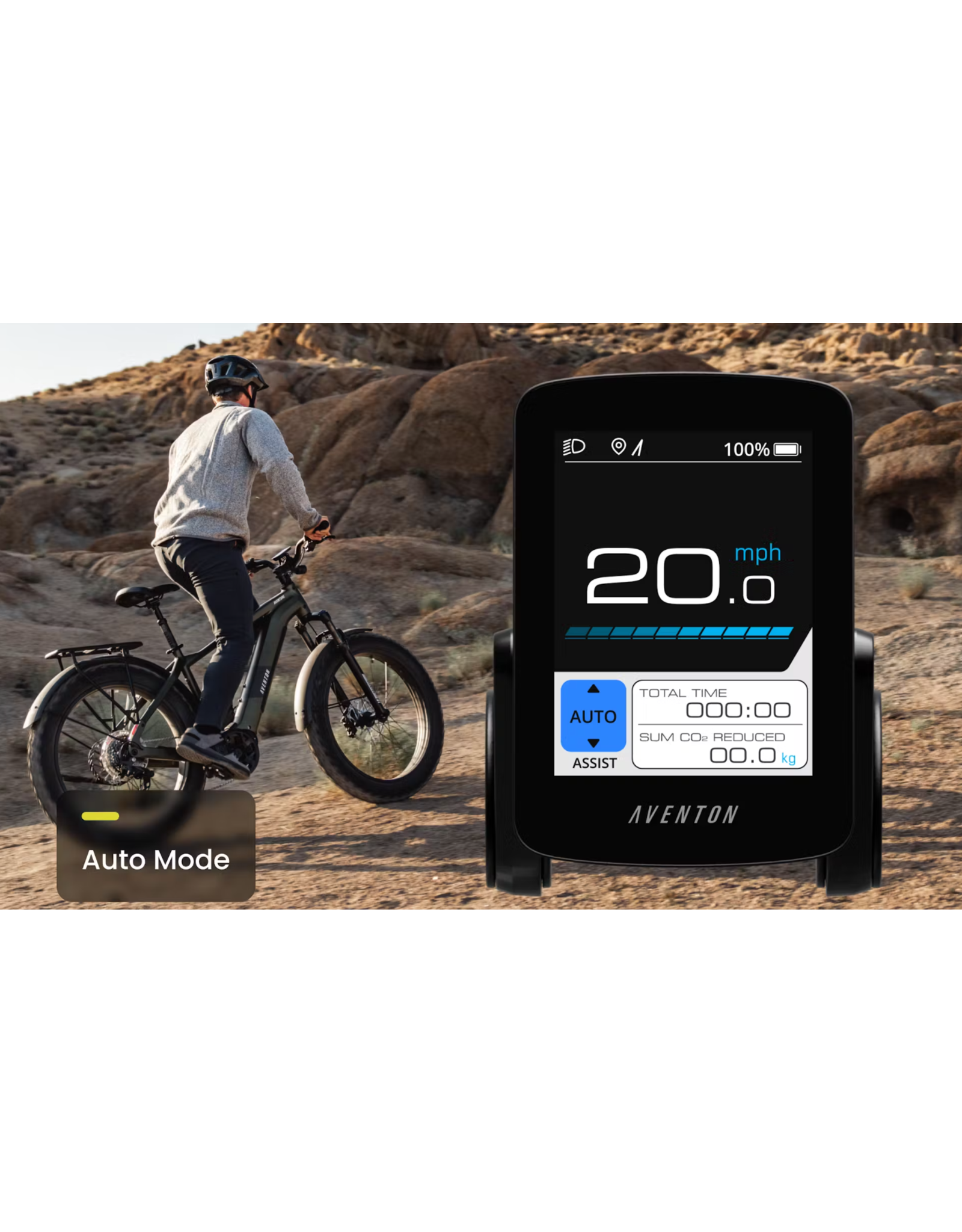

Auto Mode

No need to switch between pedal assist modes. Auto Mode uses internal sensors to adjust motor support based on the terrain’s slope, delivering just the right amount of power exactly when you need it, resulting in a more natural, seamless ride experience.

Theft Deterrence / Startup Password / GPS^† Tracking

Theft deterrence features like the integrated rear wheel lock, optional startup password, and GPS^† tracking all help protect your bike—making it harder to move without authorization, easier to locate, and giving you greater peace of mind when parked.

Over-the-Air Updates

Over-the-air updates ensure your bike receives the latest ride features and improvements automatically through the bike’s display, keeping it up to date without a visit to the shop.



Model

Aventure M Ebike

Ideal Use

All-Terrain Performance

Weight

73 lbs

Total Weight Limit

400 lbs

Rider Height

R: 5'3" -5'10" | L: 5'10" - 6'4"

Ebike Class

Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)

Range

Up to 85 Miles

Water Resistance

Bike - IPX6 // Motor - IP67

Battery Safety Certifications

Certified to UL 2271

Safety Certifications

UL Safety Certified
UL 2849

Frameset

Fork

Aventon/Zoom Suspension Fork, 80mm travel, with lockout

Rear Spacing

190mm

Fork Spacing

135mm

Frame

6061 Aluminum

Wheelset

Front Wheel

26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve

Rear Wheel

26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve

Tires

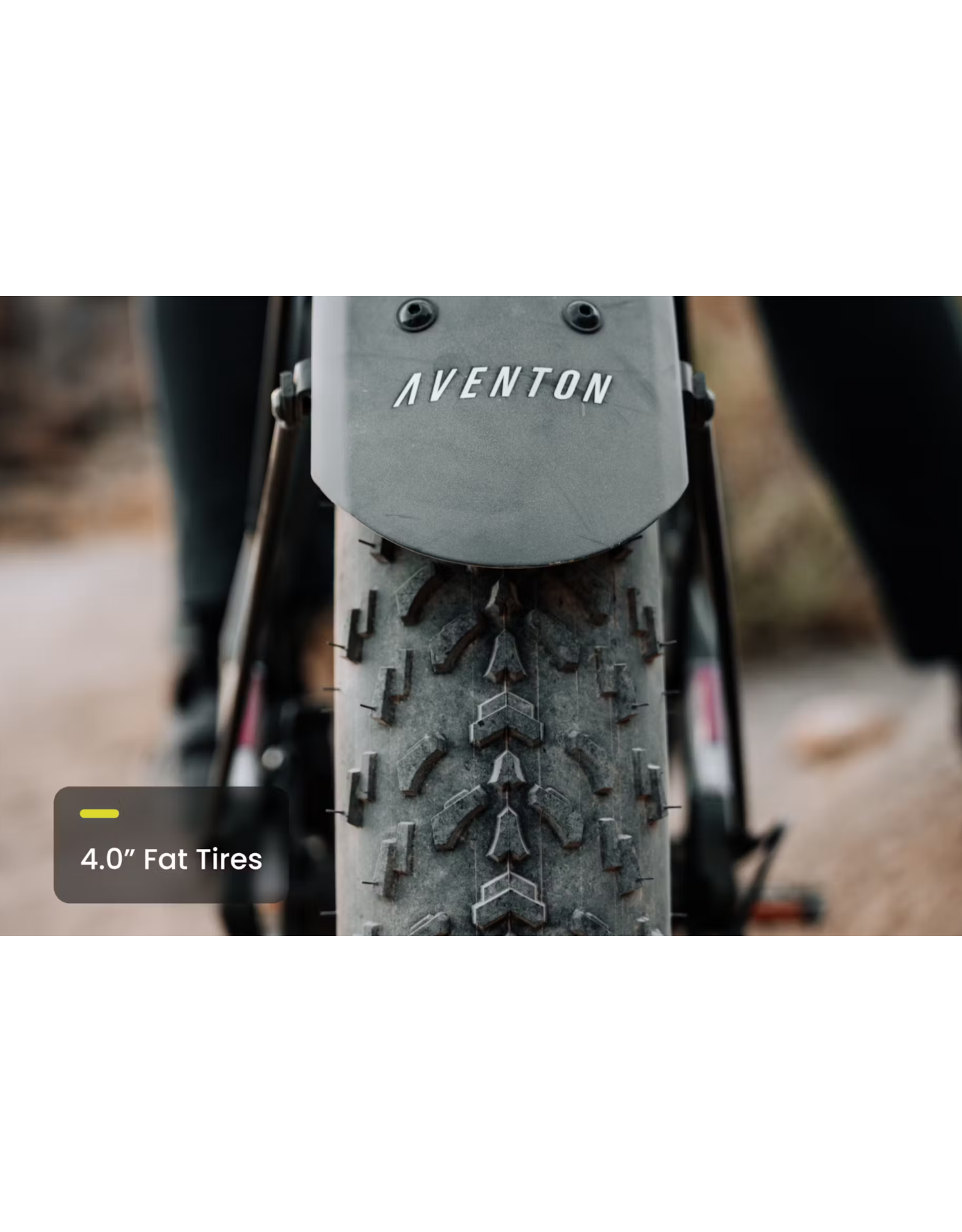

Inova 26x4.0 puncture resistant

Ebike System

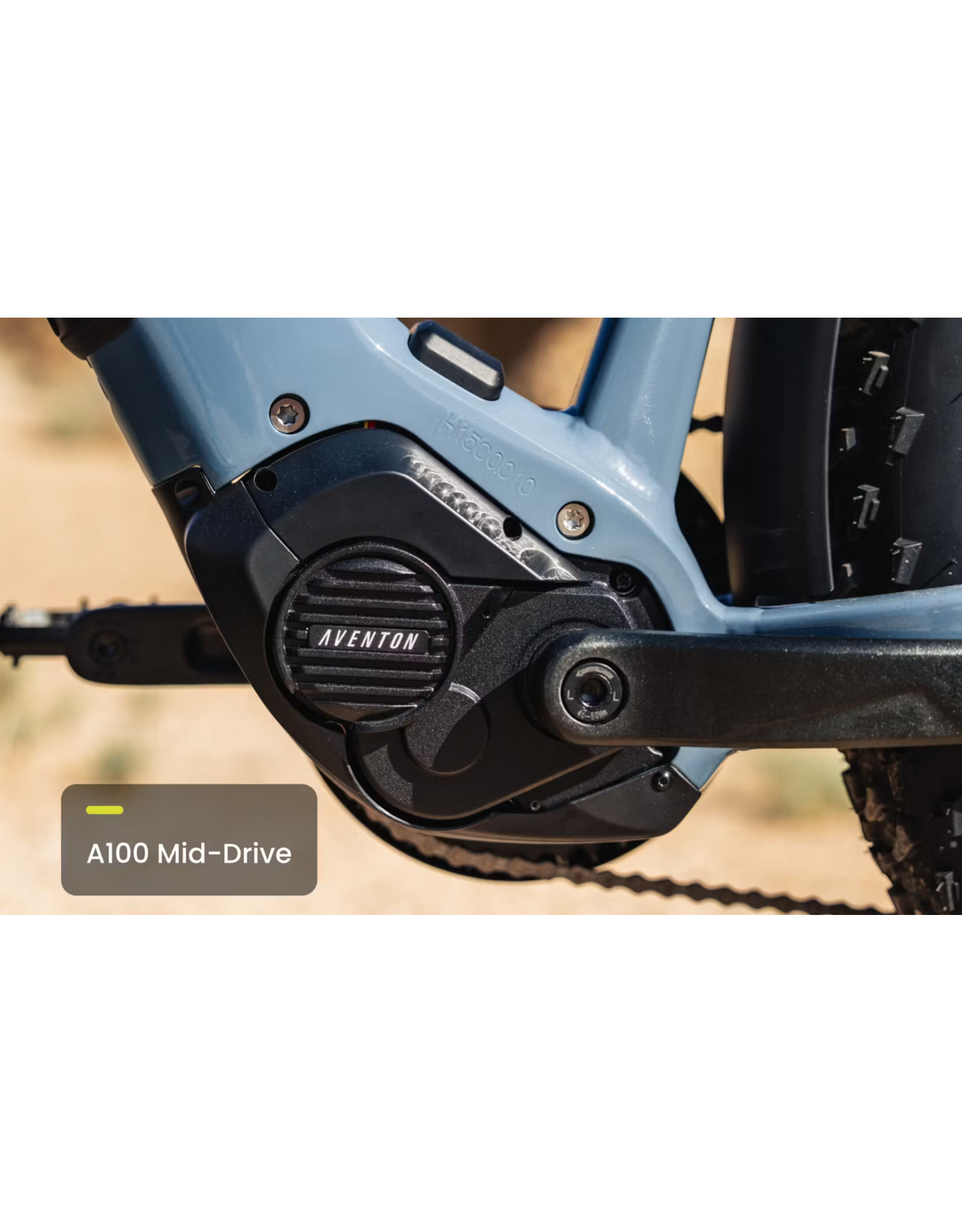

Motor

Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating

Motor Torque

100Nm

Display

Aventon BC280

Battery

Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells

Battery Weight

8.7lbs

Controller

Integrated in Motor

Throttle

Aftermarket Throttle Available for Purchase

Sensors

Double Sided Torque Sensor Integrated in Motor

Charger

36V Output: 42V/ 4A

Charging time from 0% to 100%

5 hours

Lights

Integrated front and rear running lights (no brake lights)

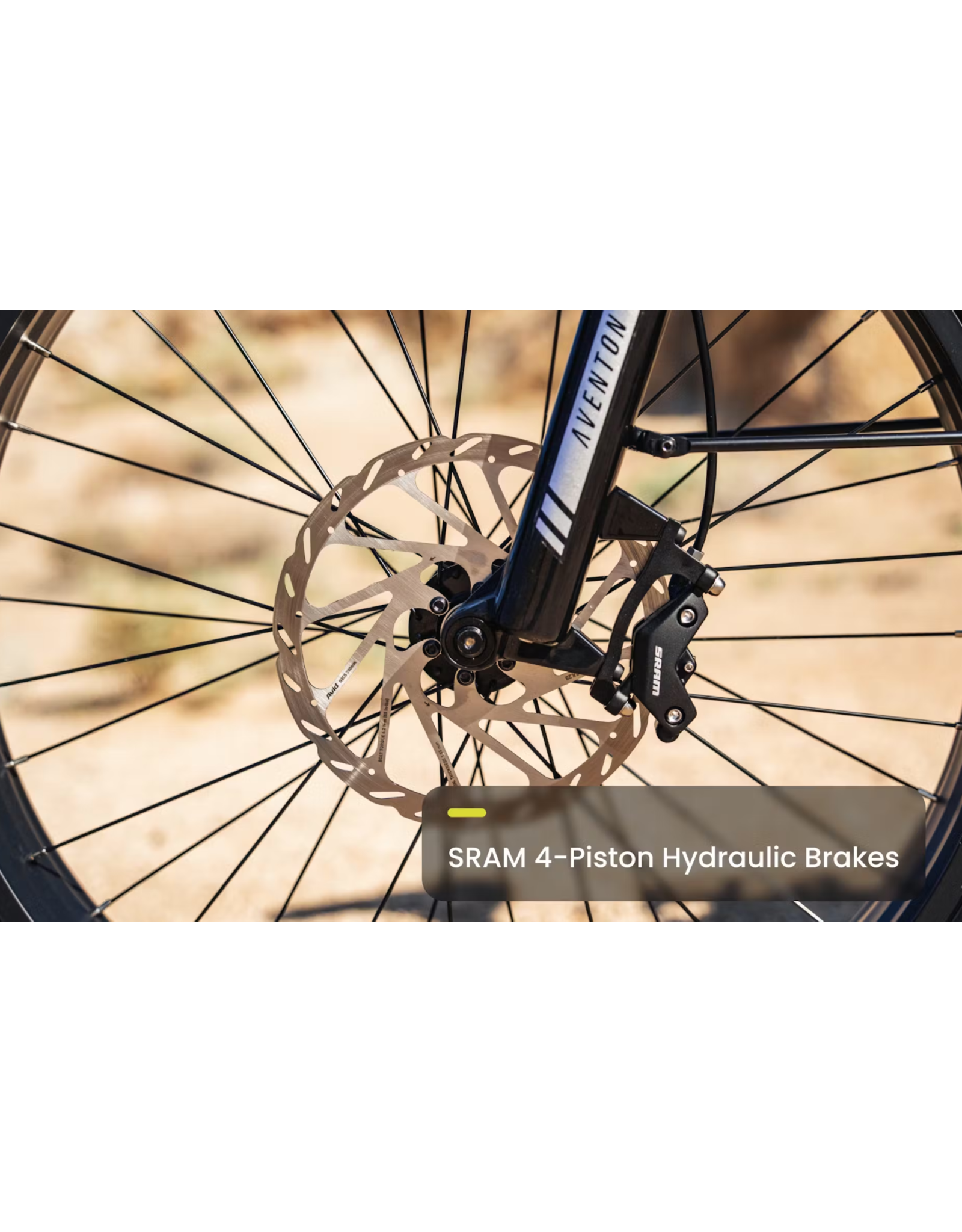

Brakes

Front Brake

SRAM DB4 Hydraulic Disc Brakes w/o cutoff

Rear Brake

SRAM DB4 Hydraulic Disc Brakes w/o cutoff

Front Brake Rotor

Sram G2 200mm 6-Bolt

Rear Brake Rotor

Sram G2 200mm 6-Bolt

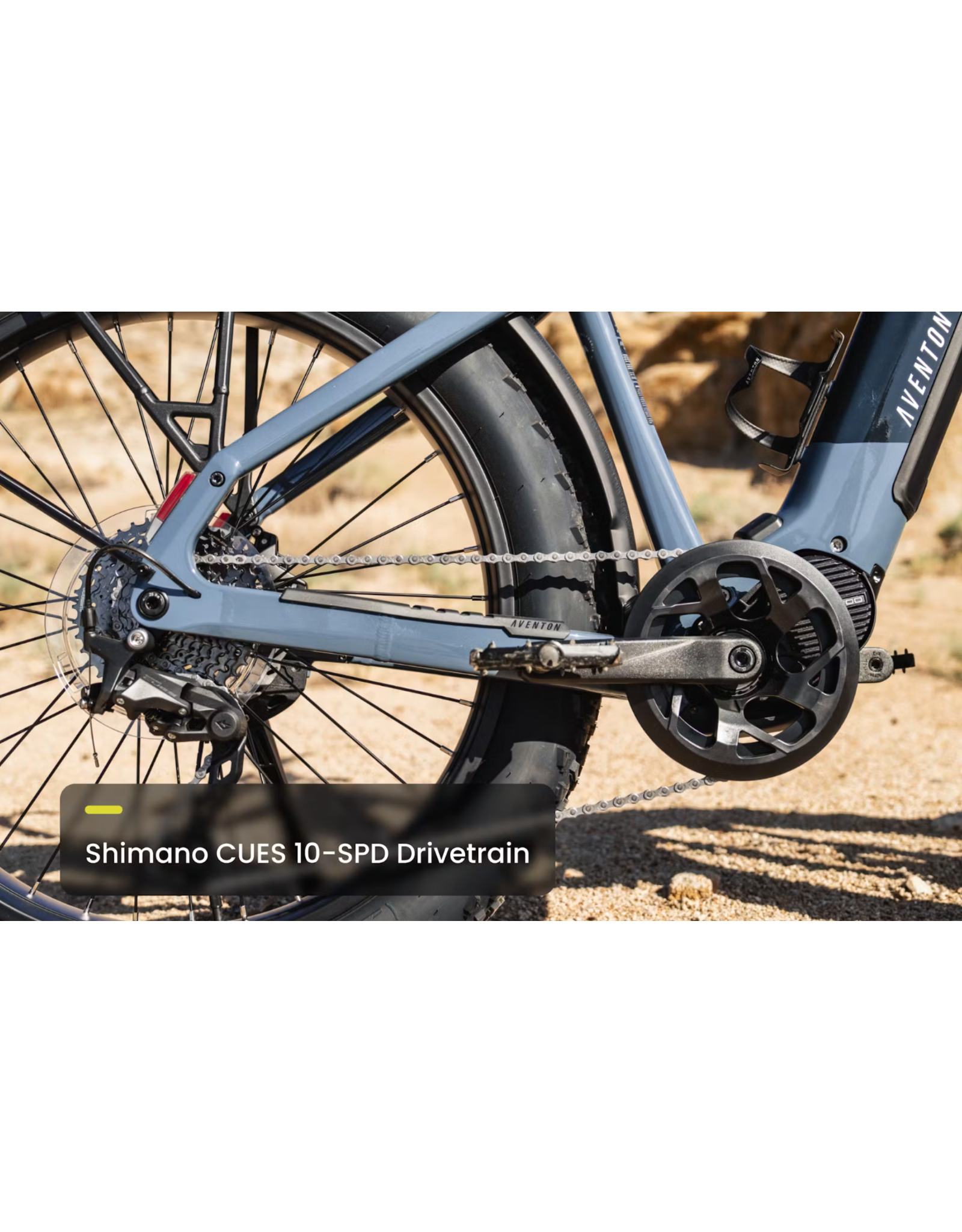

Drivetrain

Rear Derailleur

Shimano Cues 10-Speed

Shifter

E-Shifter

Chain

9/10/11 Speed 124L

Cassette

Shimano Cues 10-Speed 11-39T

Chainring

44T

Chainring BCD

N/A

Crankset

Aventon 170mm ISIS Splined

Bottom Bracket

N/A

Pedals

9/16" Alloy Platform

Cockpit

Saddle

Aventon Saddle

Seatpost

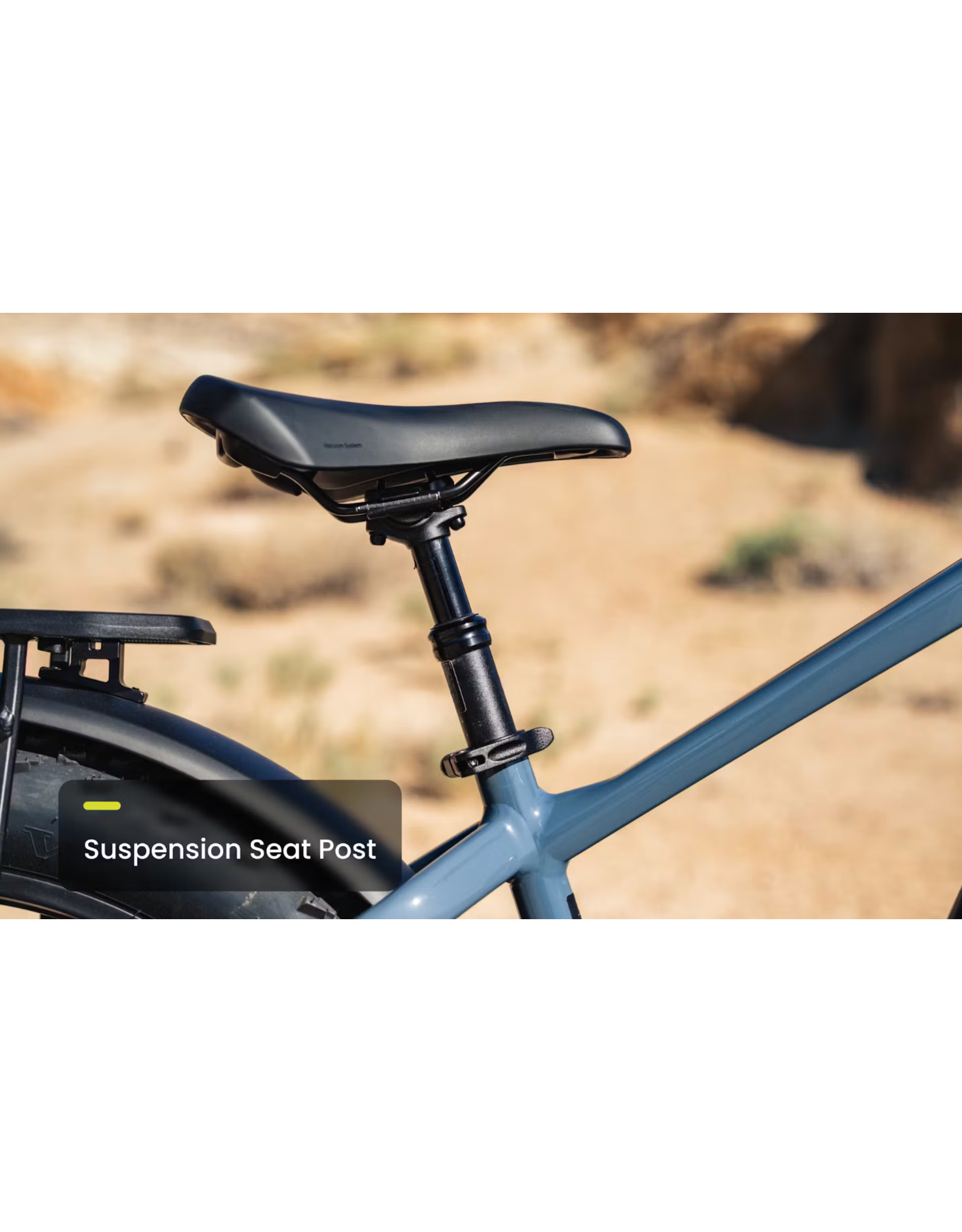

Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel

Seatpost Clamp

34.9mm

Handlebars

Aluminum 31.8, 720mm

Grips

Aventon Lock on grips

Headset

Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs

Included Accessories

Kickstand

Included, rear mount

Rear Rack

Included

Fenders

Included



Technical Overview

Aventure M comes out of the box as a Class I ebike, with pedal assist. An Aventon throttle can be purchased and easily installed on Aventure M to convert to Class 2. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.
